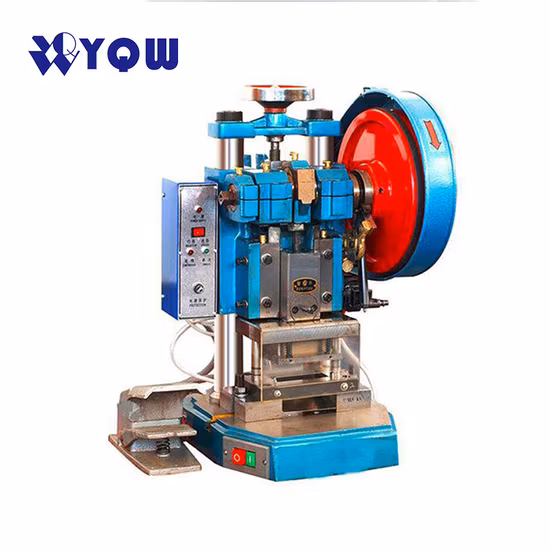

High Efficiency Vertical Electric A4 PVC Card Punching Machine
|Model NO.||D5-1 punching machine|
|Punching Method||Electric Driven|
|Punching Thickness||0.3 mm-1.2mm|
|Transport Package||Standard Export Wooden Box|
|Specification||Machine size: 640mm*450mm*700mm|
YQW-D5-1 punching machineProduct Description
YQW-D5-1 punching machine adopts the major driving manner is that the electromotor drives the fly wheel, through the function of clutch to punch the cards. We use premium materials and highly precise devices to produce this kind of machine. It has the characters of good rigidity, high precision, refined structure, top quality, stable, performance and safe and convenient operation. The speed is fast and the power is strong, the edge of the cards is smoothly cut. The machine is designed with precise automatic punching location holes. It's the indispensable device for punching PVC cards. You can change the mold according to your demands.
1. Our mould is good rigidity,high precision
2. Precise automatic punching location holes.
3. Structure is reasonable ,we can make non-standard mould according to customers'request.
|Specification||YQW-D5-1 punching machine|
|Punching size||International credit cards standard size( 85.7×54mm )|
|Feeding size||105 mm|
|Punching thickness||0.3 mm-1.2mm|
|Punching method||Electric driven|
|Power supply||220V AC 50HZ|
|Outline dimension||640 mm*450mm *700 mm|
YQW since 2019, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, YQW keeps good reputation on excellent quality, customer focus service.and competitive prices.
YQW always insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development. It has researched and developed kinds of production equipments for plastic and paper card, contact and contactless IC cards, double-interfaced cards and printing business cards . The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
